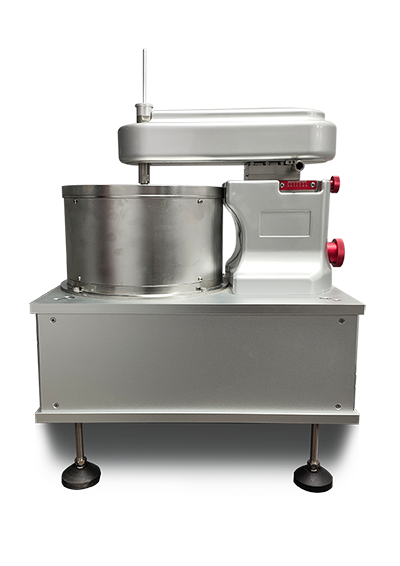

This tester can be used for the evaluation of the friction and wear performance of various materials and films under different temperature from room temperature to 1000 ℃.

Key technical parameters

1. Instrument weight：58kg

2. Appearance size:600×350×550(mm×mm×mm)

3. Loading way: Weight loading

4. Load range: 100～5000g

5. Friction measurement range:0~50N

6. Friction measurement accuracy：0.1%F.S

7. Maximum temperature：1000℃

8. Rated temperature: room temperature ～900℃ Multi-stage program setting

9. Heating rate: < 10 ℃min

10. Stage rotating speed: 10～3000 r/min, resolution±1 r/min

11. Stage height variation range: 0～16mm

12. Rotation radius: 3～15 mm

13. Sample size: Φ53mm，the thickness is 1～7mm

14. Power：4.5kw

15. Operating Voltage：220V

16. Mating materials diameter: Φ4 mm, Φ6 mm

17.  Friction pair materials: GCr15 steel ball, AlO ceramic ball, ZrO ceramic ball, SiN ceramic ball

18.  Data processing: the Access, Excel database file, Word experiment report and Jpeg picture can be generated
